Introduction

The anterior cruciate ligament (ACL) is vital in maintaining knee joint stability, especially in preventing anterior tibial translation and rotation.¹ It is one of the two cruciate ligaments in the knee, the other being the posterior cruciate ligament (PCL) (see Figures 1 and 2).^2,3 They are named "cruciate" due to the cross-like formation these ligaments create.⁴ The terms "anterior" and "posterior" refer to their attachment points on the tibia.⁴

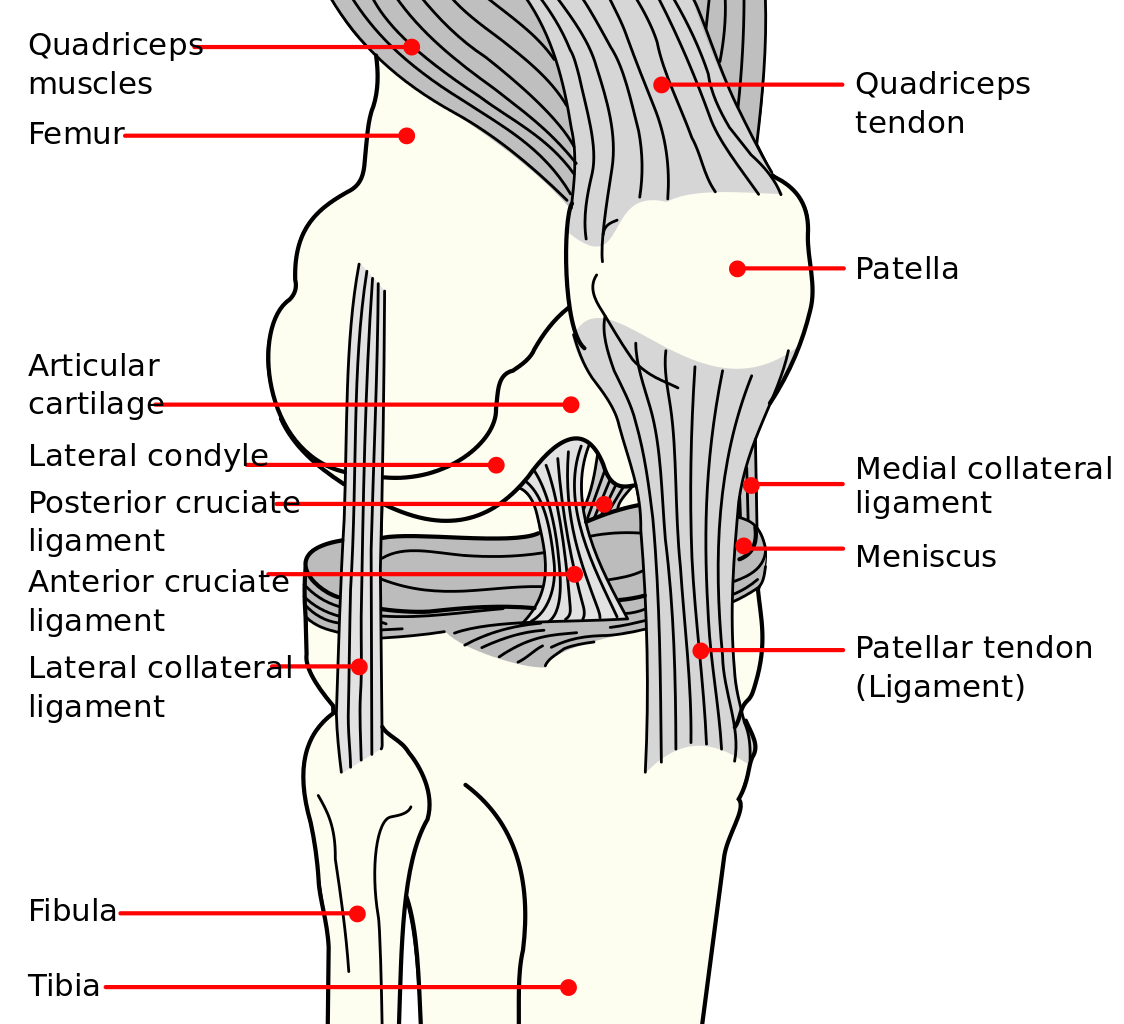

Figure 1: Sagittal view of the knee with the anterior cruciate ligament (ACL) (left) and posterior cruciate ligament (PCL) (right) pointed out. Marios G Lykissas, George I Mataliotakis, Nikolaos Paschos, Christos Panovrakos, Alexandros E Beris and Christos D Papageorgiou, CC BY-SA 2.0, via Wikimedia Commons

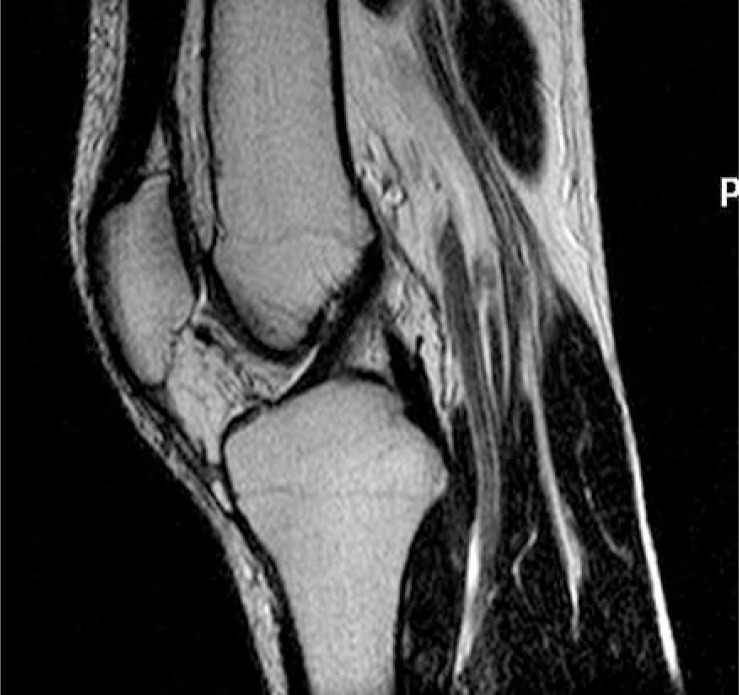

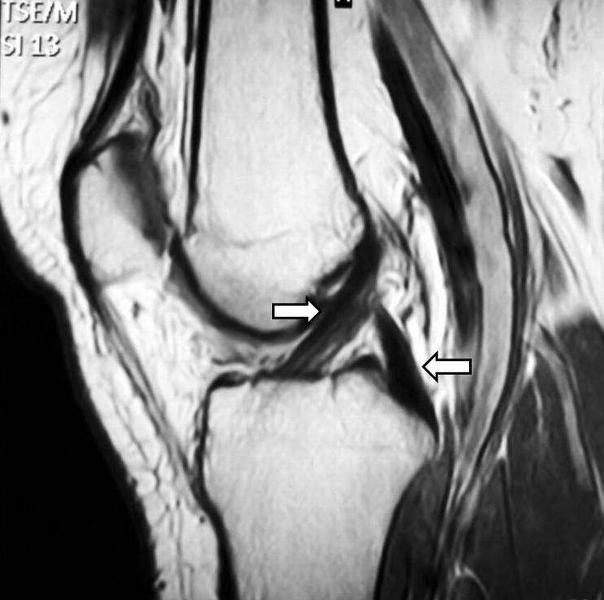

Figure 2: Sagittal T2 MRI of the knee showing the anterior to posterior direction of the anterior cruciate ligament (ACL) from tibia to femur. Dragoslav Nenezic and Igor Kocijancic, "The value of the sagittal-oblique MRI technique for injuries of the anterior cruciate ligament in the knee," Radiol Oncol, 2013;47(1):19–25. doi:10.2478/raon-2013-0006, PMCID: PMC3573830, via CC BY 3.0

Embryology

The ACL begins its development around the sixth week of gestation, even before joint cavitation occurs.¹ Due to its embryological development, the ACL remains extrasynovial throughout its course while being intra-articular, due to a surrounding fold of synovium which originates from the posterior of the joint.¹

Anatomy

Both the ACL and the PCL are located within the intercondylar region of the knee joint.¹ The ACL arises from the medial part of the anterior intercondylar area of the tibia.^4,5,7 The ACL sends fibres anteriorly beneath the anterior (transverse) intermeniscal ligament, with some blending with the anterior and posterior horns of the lateral meniscus.¹ From its tibial attachment, the ACL courses upwards, laterally, and posteriorly to attach to the posterior aspect of the medial side of the lateral femoral condyle.^4,7 The tibial attachment of the ACL is stronger than its femoral attachment, although, the PCL is the stonger of the two cruciate ligaments overal.^4,5 The ACL is comprised of two distinct bundles observable on MRI: a smaller anteromedial bundle (AMB) and a larger posterolateral bundle (PLB).^1,5,6 These two bundles are surrounded by connective tissue, seen as high-signal on MRI making the distinction between the bundles clear, while also having separate insertion sites.^1,6-8

The AMB arises from the most anterior and proximal aspect of the femoral attachment, while the PLB originates from the posterodistal aspect of the femoral attachment.¹ At the tibial attachment, the AMB inserts anteromedially, and the PLB inserts posterolaterally.¹

Refer to Figures 3-6 for images of the knee ligaments and menisci, as well as the bundles of the ACL.^9-12

Figure 3: Anterior view of the knee. Note the anterior and posterior tibial origin of the anterior and posterior cruciate ligaments. See page for author, Public domain, via Wikimedia Commons

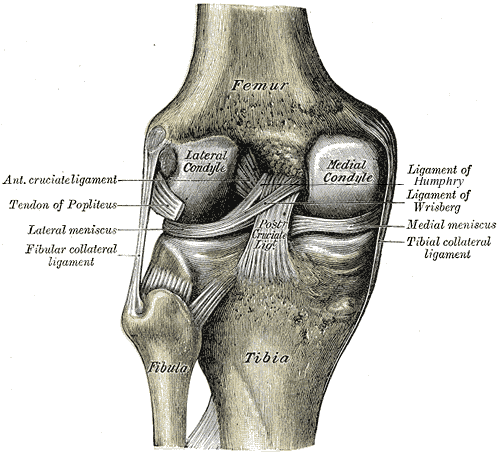

Figure 4: Posterior view of the knee. Anterior cruciate ligament (ACL) can be seen deep to the posterior cruciate ligament (PCL), ligament of Wrisberg, and the ligament of Humphrey. Henry Vandyke Carter, Public domain, via Wikimedia Commons

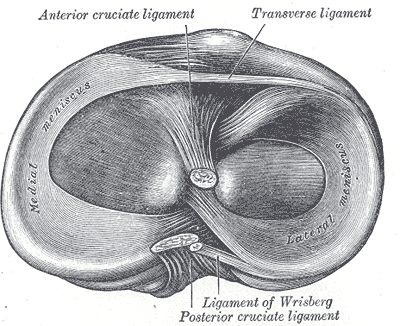

Figure 5: Superior view of the knee with the anterior cruciate ligament (ACL), posterior cruciate ligament (PCL), and ligament of Wrisberg cut. Henry Vandyke Carter, Public domain, via Wikimedia Commons

Figure 6: View of the anteromedial (AM) bundle (AMB) and posterolateral (PL) bundle (PLB). NicDumZ, CC BY-SA 3.0, via Wikimedia Commons

Blood Supply and Innervation

Blood Supply

The middle genicular artery, which branches from the anterior aspect of the popliteal artery just inferior to the superior genicular artery and just superior to the sural artery, provides the primary blood supply to the ACL (see Figure 7 and 8).^1,6,13,14

The proximal ACL is more richly vascularised than its distal portion.¹

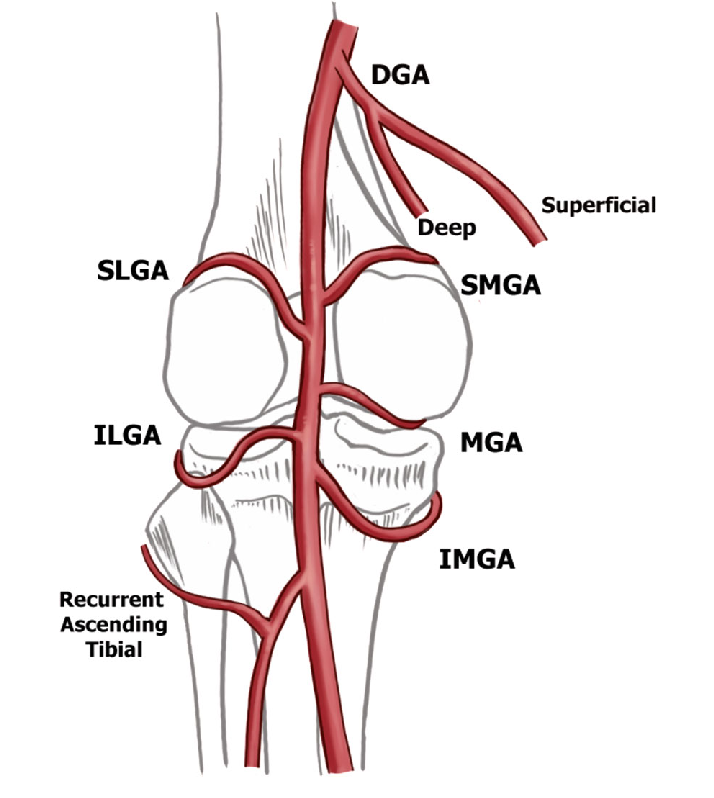

Figure 7: Schema of the genicular arteries. Descending genicular artery (DGA), superior lateral (SLGA), superior medial (SMGA), middle genicular (MGA), inferior medial (IMGA), inferior lateral (ILGA), superior patellar (SPA), and recurrent anterior tibial arter-ies (RATA). Tyler Callese et al., CC BY 4.0, via CardioVascular and Interventional Radiology.

Figure 8: Anterior and posterior course of the arteries surrounding the knee on a 3D model. 1 = Inferior medial genicular artery, 2 = Superior medial genicular artery, 3 = Superior lateral genicular artery, 4 = Inferior lateral genicular artery, 5 = Middle genicular artery, Black dotted line = position of patella, Light blue line = Anterior cruciate ligament (ACL), light blue dotted line = Posterior cruciate ligament (PCL). Sinno et al., CC BY 4.0, via Journal of Experimental Orthopaedics.

Innervation

The ACL receives fibres from the posterior articular branches of the tibial nerve.¹

Variations

Some studies suggest that the ACL is composed of three bundles: AMB, PLB, and an intermediate bundle.^1,8 Others indicate that in up to 26% of individuals, the ACL can be a single bundle.⁸

Imaging

The ACL differs from other ligaments by appearing heterogeneous in signal on MRI. This characteristic is beneficial in visualising and diagnosing ACL injuries.⁷

Clinical Relevance

ACL Tears:

Typically result from acute injuries and are often associated with meniscal and medial collateral ligament tears.⁵

May present as a discontinuity of ligament fibres or an abnormal course and signal of the ligament.⁵
